Link Calculation

Metric units | Imperial units

Calculation title

Input values

MP100/360 - All Outdoor solution up to 100/384 Mbps

MP400 - All Outdoor solution up to 900 Mbps

AL80GE - All Outdoor solution up to 1150 Mbps

ALxxF - Split solution up to 800 Mbps (2+0)

GHz
  •
  •
  •
Mbps
MHz

Threshold sensitivity for BER = 10-6

dBm

Maximum TX power from ODU to antenna

dBm

Path

km
 Show map and search
Line of Sight Antenna Terrain Fresnel zone

The coordinates must be in form: Deg° Min' Sec" N/S, Deg° Min' Sec" E/W,

E.g.: 49°44'12"N, 13°22'30"E

m
dBi
m
m

The coordinates must be in form: Deg° Min' Sec" N/S, Deg° Min' Sec" E/W,

E.g.: 49°44'12"N, 13°22'30"E

m
dBi
m
m

Results

Fade margin [dB]
Fade margin / 1 km [dB]
RX Level Pin [dBm]
RSSI Voltage [V]
TX Power transmitted from antenna A / B (EIRP) [dBm]
Total attenuation Ac [dB]
Attenuation in atmosphere [dB]
Elevation A-B / B-A [°]
Azimuth A-B / B-A [°]


Rain availability calculation according ITU-R P.530-13

Availability calculation according ITU-R P.530-13

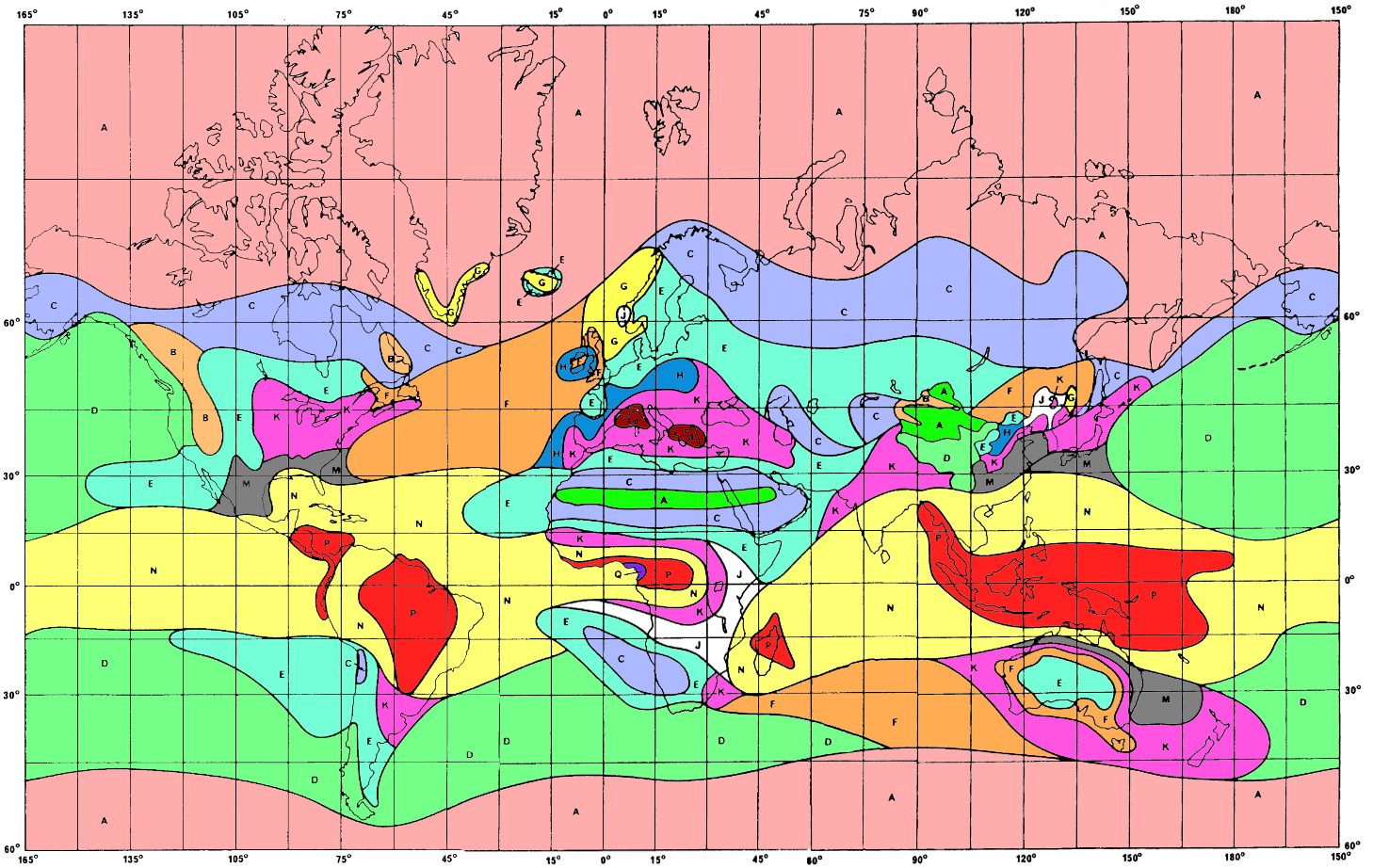

Show rain zone map

mm/h
Maximum rain rate (V polarization) [mm/h]
Link availability (V polarization) [%]
Link unavailability (V polarization) [min/year]
Maximum rain rate (H polarization) [mm/h]
Link availability (H polarization) [%]
Link unavailability (H polarization) [min/year]
Show link availability for lower capacity (ACM operation)


Calculation of radius of the 1st Fresnel zone

GHz
km
km
Radius of the 1st Fresnel zone [m]
